Water Treatment Project RWT-VA-WELL 0021

Project Sample RWT-VA-WELL 0021

Well water supply is your closest solution treatment

We will improve your well water taste and smell while removing harmful bacteria and chemicals from it.

Well water treatment residential facility design (2021)

This project is a Residential Water Treatment system (RWT) designed in Vancouver Island. Details such as the Area statement, layout dimensions, filtration items & equipment with their durability, Habitat info, temperature, Nearest Water Bodies, and more about the residential water treatment project for drinking purposes are gathered here.

Water treatment project sample designed by CANADAQUA engineers, and all the provided schemas are experimental. In your location, the situation might vary on civil, technical, location, and design data and statistics we provide in this section. For every water treatment plant facility, we have an expert to analyze your area's aspects and avoid problems in the future.

Potable Water for the Whole House

Water treatment plant design should be engineered with high quality and standards to remain at its high output for long-time service to provide potable water to your whole house facilities. CANADAQUA designers made this possible through the best equipment, services, and 24/7 supports. We provide every water filtration product you need for your water. Your water supply will be tested under laboratory conditions, and we take action over the results from Maxxam Lab.

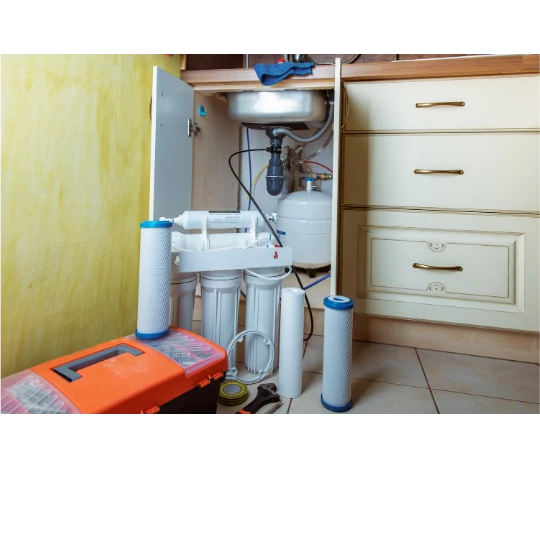

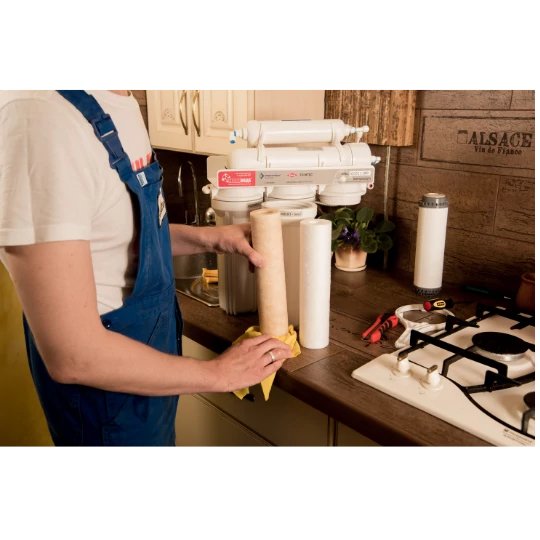

Maintenance

UV-C Purifier

Safe Storage

Water Quality testing

RWT-VA-WELL 0021 Scheme specifications

+ 5, 20 mic Sediment filters

+ Chemical Feed Pump

+ WellPro Chlorinator

+ Excelclear Chlorine Pellets

+ Moulded Solution Tanks

Water treatment project location details

LocationCanada, BC, Vancouver Island

Area

Nanaimo, Hammond Bay Rd

Temp

June 22 to September 10 above 67°F, November 13 to March 12 below 49°F

Location HabitatGreen Mountain Wildlife (Roosevelt elk, black bear, and various threatened and endangered species, including the white-tailed ptarmigan, western toad and northern pygmy owl)

Potential water sourceDug/Bored wells, driven wells, and drilled wells

Nearest Water BodiesQuennel Lake, Richard Lake, Westwood Lake, Nanaimo River,

Nearest TownLadysmith, Parksville, Chemainus, Lake Cowichan

Power requirementbetween 20 and 45 kWh/(PE•a)

Water Requirement200 to 400 gallons per day per connection

Ecologically Delicate Areas Canadian Wildlife Service (Environment Canada) Ministry of Water, Land and Air Protection (Vancouver Island Region, Nanaimo) Ministry of Sustainable Resource Management (Conservation Data Centre)

Why should well water be treated?

Water-related diseases cause about 1.8 million deaths annually, with 88% related to unsafe water supply, sanitation, and poor disinfection quality. Heavy metals, bacteria & viruses, arsenic, and other harmful elements can contaminate the well water. For having a healthy life while getting the most of your nearest water supply sources, your well water should be treated by the global standard of drinking water.

The best treatment for well water in Canada (2021)

Well water is one of the most wanted sources of groundwater in Canada. About 9 million people rely on groundwater resources for residential use, which will make 30% of the population. This provides the best opportunity to treat well water supply for drinking. The best treatment for well water is a system that contains whole house filtration, carbon filters, and chemical feeders to remove bad taste, water potential risks and perform the disinfection process completely through filtration, purification, and softening.

Backwash filters, Sanitizers, and Sediment filter cartridges

Quick Change GAC Cartridge

Sediment Reduction Filter

Backwashable Filter

3-Piece Tap Filter Housing

High Performance Home Filter Cartridge

Sediment Tap Cartridge

Softener and Tannin Removal

Sanitizer

Temperature Management Valve

Solenoid Valve Kit

Lamp/Quartz Sleeve Combo Pack

Replacement UV Lamp

Replacement Controller

Replacement COMMcenter

4-20mA Interface

Our support agents are ready to hear you out and give you the best advice about your facility

Explore

Explore more of our services from here to see how purification, filtration, softening and harvesting happens through the treatment process.

Explore

Well water treatment equipment for a long-lasting distribution system

CANADAQUA provides every piece of equipment you need for your well water supply. Pressure tanks, back washable carbon and sediment filters, Iron & Tannin filters, water softeners, and reverse osmosis (RO) with Ultraviolet Light disinfection system is the main equipment for having durable water filtration system for your home. We will guarantee our product quality over an engineered water distribution system.

Chlorine chemical pump for well treatment you need to have a crystal-clear water

Your well water needs to be feed with liquid chlorine or pellets. Our Waterite and Well Pro chemical injectors, chlorine feeders, and dispensers with high quality are suitable for any type of well near your residential location. Our feeders inject a precise amount of chemicals directly into the well water line and make the first phase of well treatment to reach crystal-clear water for healthy consumption.

Whole House filters, Housings, and Pumps

Quick Change GAC Cartridge

Sediment Reduction Filter

Backwashable Filter

3-Piece Tap Filter Housing

High Performance Home Filter Cartridge

Sediment Tap Cartridge

Softener and Tannin Removal

Sanitizer

Temperature Management Valve

Solenoid Valve Kit

Lamp/Quartz Sleeve Combo Pack

Replacement UV Lamp

Replacement Controller

Replacement COMMcenter

4-20mA Interface

Water treatment equipment details

Treatment SchemeWell water treatment plant for drinking purpose

Water Supply TypeWater coming by nearby Well

Water Pollution Level Organic chemicals, Heavy metals, Excessive Fluoride, Radionuclides

Filtration ItemsSediment filters, water pump, Chemical feeders, Chlorine pellets, Carbon block filters, Collection tank

Tank Dimensions2100 x 1420, 1800 x 2000

Primary Treatmentremoval of suspended solids

Secondary Treatmentreduction of BOD/COD of the water

Water Pumps & FeedersSubmissive pumps 25 hp submersible lake water pump, Well Pro chemical feeder

How water treatment mechanism works?

Water is pumped out from the well and flows through the house while passing among different sediment water filters for performing the water filtration process. The filtered water then becomes ready for purification and softening over carbon block filters and Reverse Osmosis (RO) systems. The treated water can store within storage facilities for later use or go straight to the valves. With pies and water treatment equipment placement anywhere with a strategic design, healthy drinking water is prepared for distribution over the whole house by an engineered distribution until it reaches your home. The final phase of filtration, purification, and softening happens inside your house. Undersink filtration system with inline filters, RO system, and softeners are the treatment solutions for having the crystal-clear water out of your faucet.

10 best Whole house water filtration systems for well water in Canada 2021

Whole house filtration systems are popular today because of their multi-functionality.
1. Express Whole House Water Filters
2. Culligan WH-HD200-C
3.Aquaboon Big Blue Whole House
4. iSpring WGB32B 3-Stage
5. Aquasana EQ-WELL-UV-PRO-AST
6. 3M AP904 Aqua-Pure
7. Home Master Three Stage
8. iSpring WSP-50 Reusable Whole House Spin Down Sediment Filter
9. DuPont WFPF13003B Universal
10. DuPont WFPF13003B Universal

Well water treatment cost - affordable plans for residential use

The average water treatment cost starts from $500 and can be up to more than $5,000. Well treatment system depends on your well environments. After your well water is tested, our experts will design you a well treatment system that fits your situation while keeping the costs affordable. A good treatment system should last between 30-50 years. Well water filtration systems usually cost the same as other whole-house treatments that will cover a RO system with a sediment filter installed for the whole house.

Whole House filters, Housings, and Pumps

Quick Change GAC Cartridge

Sediment Reduction Filter

Backwashable Filter

3-Piece Tap Filter Housing

High Performance Home Filter Cartridge

Sediment Tap Cartridge

Softener and Tannin Removal

Sanitizer

Temperature Management Valve

Solenoid Valve Kit

Lamp/Quartz Sleeve Combo Pack

Replacement UV Lamp

Replacement Controller

Replacement COMMcenter

4-20mA Interface

Water treatment design parameters

Inclination angle details60°, Depth 0.65 m, Spacing 20 mm

Chemical Oxygen Demand COD (mg/l) Avg 1450, Max 100

BOD(mg/l) Avg 875, Max 60

Site plan By Autodesk Revit Treatment Plant Design model

Project plot area 8487.51 Sq. m

Treatment inlet chamber Length = 1.0 m, Width = 0.75 m, Depth = 0.35 m, Free board = 0.35 m

Implementation Type Environmental Management Plan

UV well water treatment (A fast and cheap treatment for well water)

Ultraviolet (UV) is a new disinfectant for filtration and purifying water. While more than 15 million households benefit from well water, everyone is looking for the best way to treat well water. Studies over 2000 wells show that 23% of them had contaminants with potential health concerns. UV well water treatment happens after the chemical treatment procedure. UV well water treatment With persistent disinfection method will eliminate bacteria and viruses and act as a perfect UV-C water purifier for your well.


%0
Project Difficulty

%0
Project Durability

%0
Convertibility

%0
Safety

Common Questions

Does water filtration affect healthy minerals in drinking water?

A filtering system must be so strong to remove viruses and bacteria as well as other contaminants in the water to discharge the risk for your health. Of course, some healthy minerals might be affected during this process. That's why we have our water bottle solution for you along with your filtration system.

Does the filtration process affect water taste & odour?

Chlorination and chemical addition might affect the taste of water, and bad taste would change your temper. But with chemical removal and specialty media that we have included in our filtration system, such as activated carbon filters, a pleasant smell gets back to your drinking water.

What are the common issues of filtration in water treatment?

Most of the problems related to water treatment facilities are connected with placing inappropriate equipment, distribution pipes and low-quality filters. A well-engineered setup will result in long durability and high-quality outputs.

What should I do in case of any problem?

If any problem occurs in your water treatment facility, distribution, etc., we are with you. 24/7 support of our experts will track the issues lead and get rid of them as soon as possible.

what are the type of water treatment that I need?

Four main steps of treatment must be applied to have crystal clear water for drinking. Depending on your location and water supply status, we will recommend the best setup for your facility. You can get in touch with our consultants for advice.

what are the main steps of water treatment?

Water supply collection and analysis, screening and straining, chemical addition, sedimentation, filtration, disinfection, storage and distribution are the main types of water treatment. These procedures may vary in different situations.

How much a residential water treatment system cost?

Whole house systems average costs is between $1,000 - $4,200+ and Reverse osmosis systems costs $200 - $4,200

How long have you been designing water treatment plants?

we have been designing water treatment plants for over 20 years.
